NX-LS-2

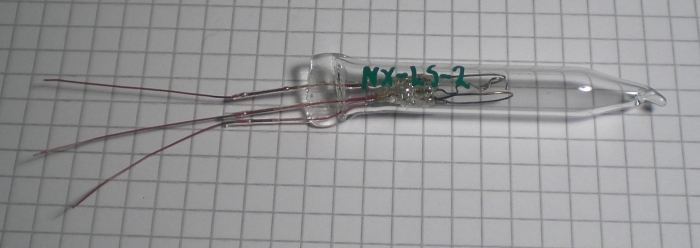

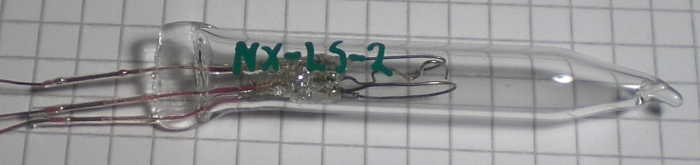

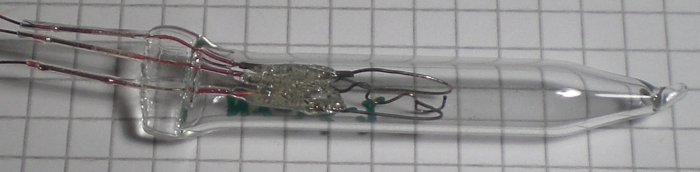

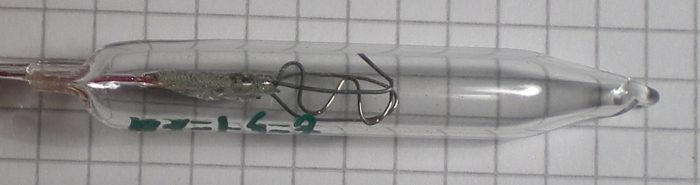

Das Nixie Lab Sample 2, oder kurz NX-LS-2, ist eine Weiterentwicklung der NX-LS-1 mit einer Ziffernhöhe von ca. 10mm, die die Zahlen 0 und 1 anzeigen kann. Sie arbeitet mit Luft bei 15mbar, hier ist sie zu sehen:

NX-LS-2

NX-LS-2

NX-LS-2

NX-LS-2

Die Zuleitungen und Durchführungen im Siegel sind aus Dumet-Draht, die Ziffern sind aus Edelstahldraht. Die Verbindungsstücke zwischen Zuleitungen und Ziffern sind aus Nickel-Draht, einem Material, das sich sehr gut punktschweißen lässt. Beim Verschmelzen mit Glas erzeugt es viele kleine Bläschen.

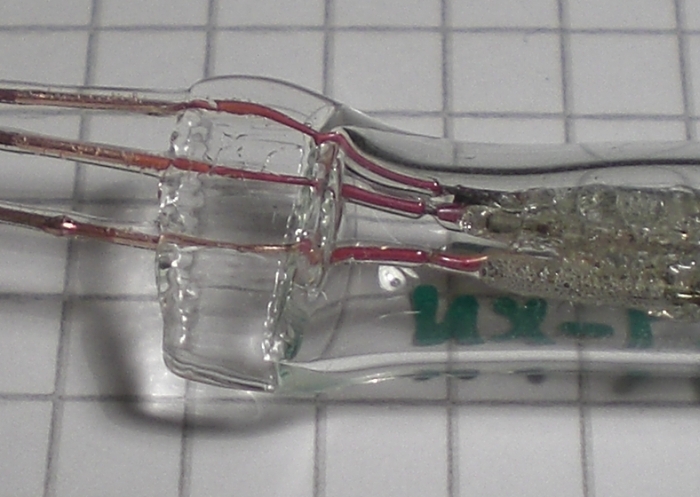

Leider ist die NX-LS-2 nicht funktionsfähig, da die Verglasung der Zuleitungsdrähte nicht ordentlich genug ausgeführt wurde; die oberen beiden Drähte - wie im folgenden Bild zu sehen - sind teilweise nicht vollständig mit Glas bedeckt, sodass das Glimmen, falls es denn auftritt, sich auf diese Stellen beschränkt und nicht auf die Ziffern überspringen kann.

NX-LS-2
