GL-LS-12

Das Glow Lamp Lab Sample 12, oder kurz GL-LS-12, ist eine der GL-LS-4 nachempfundene Glimmlampenkonstruktion, die sich neben 9mm-Kalknatron-Glasrohr und Dumet-Draht durch Elektroden aus 1mm Edelstahldraht auszeichnet. Sie sollte mit einer Luft-Füllung bei 15mbar arbeiten:

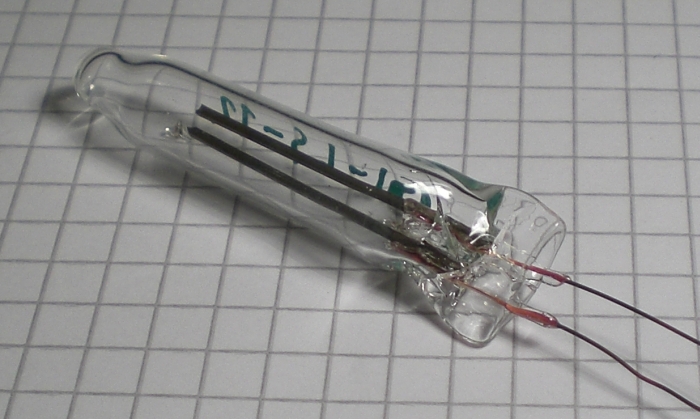

GL-LS-12

Es sollte untersucht werden, ob die ungewöhnlich weiß-blaue Färbung des Glimmens der GL-LS-4 reproduzierbar ist. Leider ist die GL-LS-12 am Quetschsiegel geplatzt.

Die Konstruktion der GL-LS-12 ist eigentlich recht simpel:

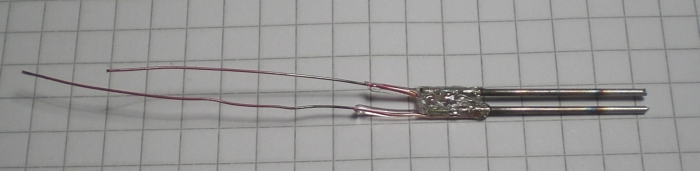

Die Konstruktion der GL-LS-12

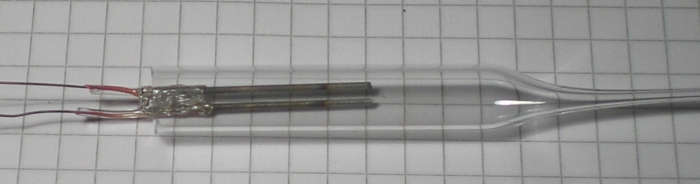

Die Konstruktion der GL-LS-12

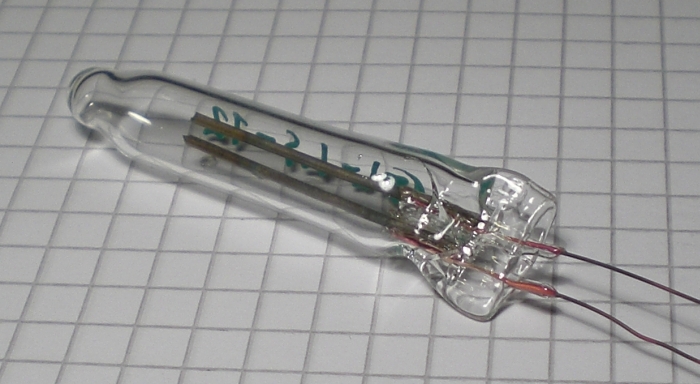

GL-LS-12

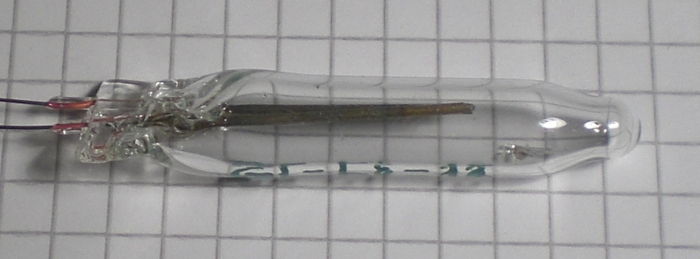

GL-LS-12

GL-LS-12

Was ist also schief gelaufen? Das Glas, das die beiden Elektroden auf Abstand hält, berührte beim Quetschsiegelprozess den Glaskolben und verschmolz zu stark mit diesem. Beim Abkühlen führte dies zu Spannungen im Glas, die das Siegel platzen ließen.

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Handcrafted Nixie tubes » GL-LS-12

GL-LS-12

The Glow Lamp Lab Sample 12, or in short GL-LS-12, is a GL-LS-4-based glow lamp construction that employs stainless steel electrodes next to the standard 9mm soda lime tubing and Dumet wire. The filling was intended to be air at 15mbar:

GL-LS-12

The purpose was to examine if the unusual white-blueish glow of the GL-LS-4 could be reproduced. Sadly the GL-LS-12 cracked at the pinch seal.

The construction of the GL-LS-12 is fairly simple:

The construction of the GL-LS-12

The construction of the GL-LS-12

GL-LS-12

GL-LS-12

GL-LS-12

So what went wrong? During the pinch-seal process, the glass drops fixating the electrodes at a constant distance from each other melted and merged with the glass tubing too strongly such that tensions built up during the cool-down that eventually caused the seal to crack.
