Z590M (Labormuster)

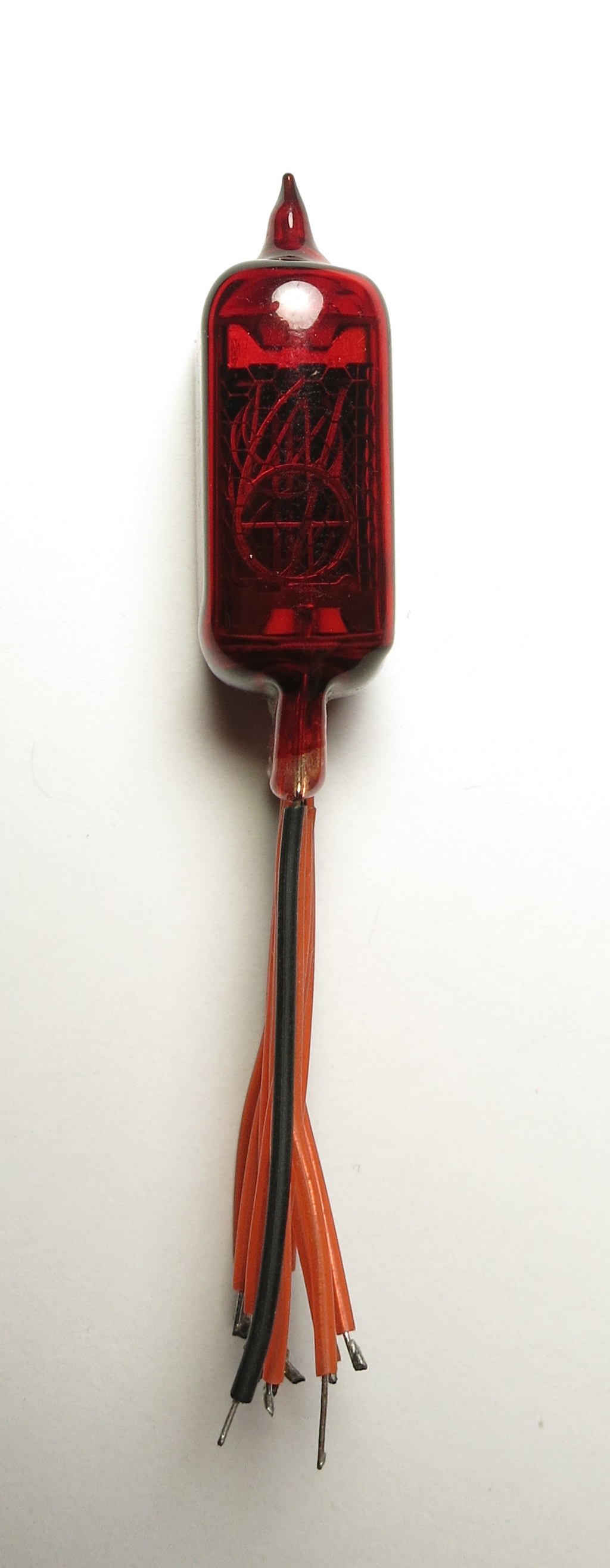

Diese Z590M vom Hersteller WF ist ein Labormuster, und hat anders als die offizielle Z590M eine Ziffernhöhe von 13mm (anstelle von 10mm). Hier ist sie im Größenvergleich zu sehen:

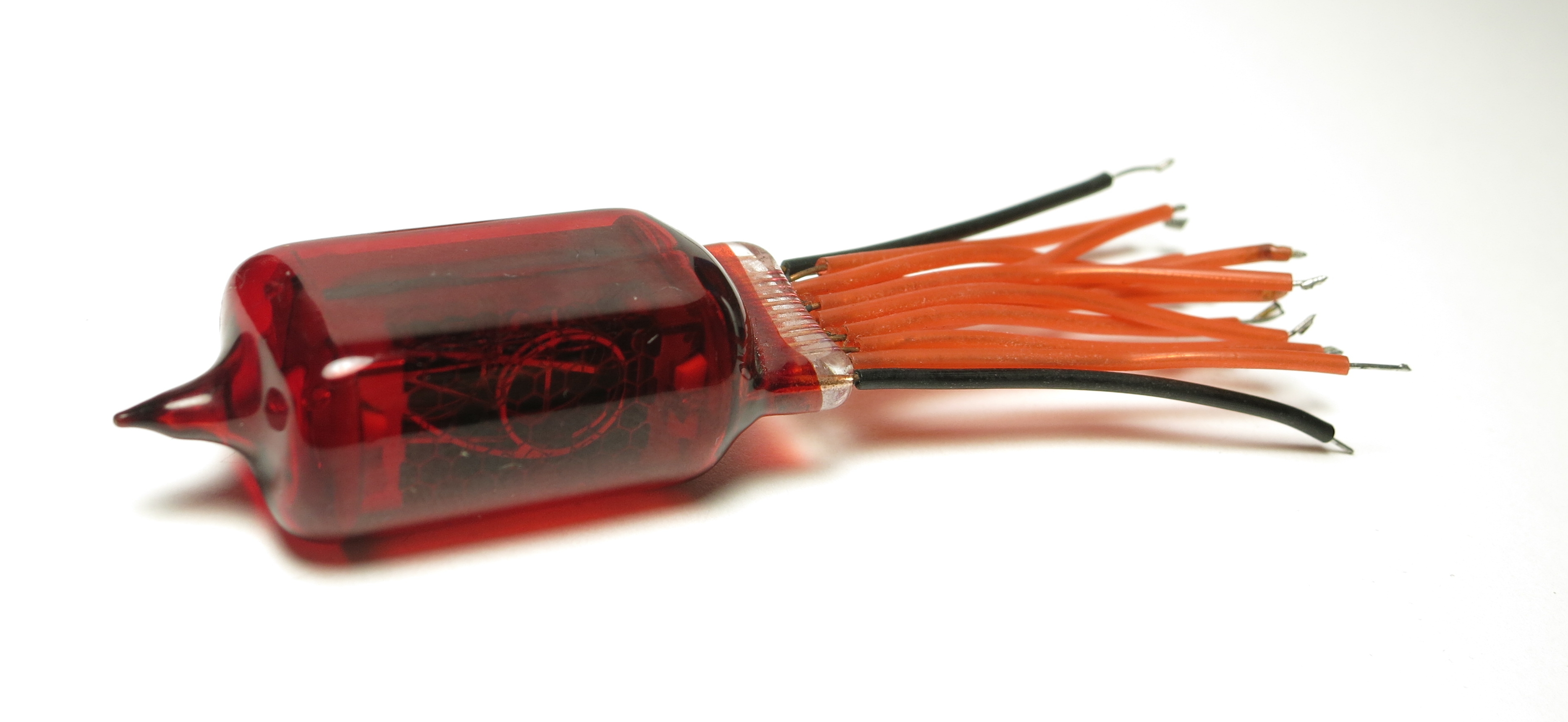

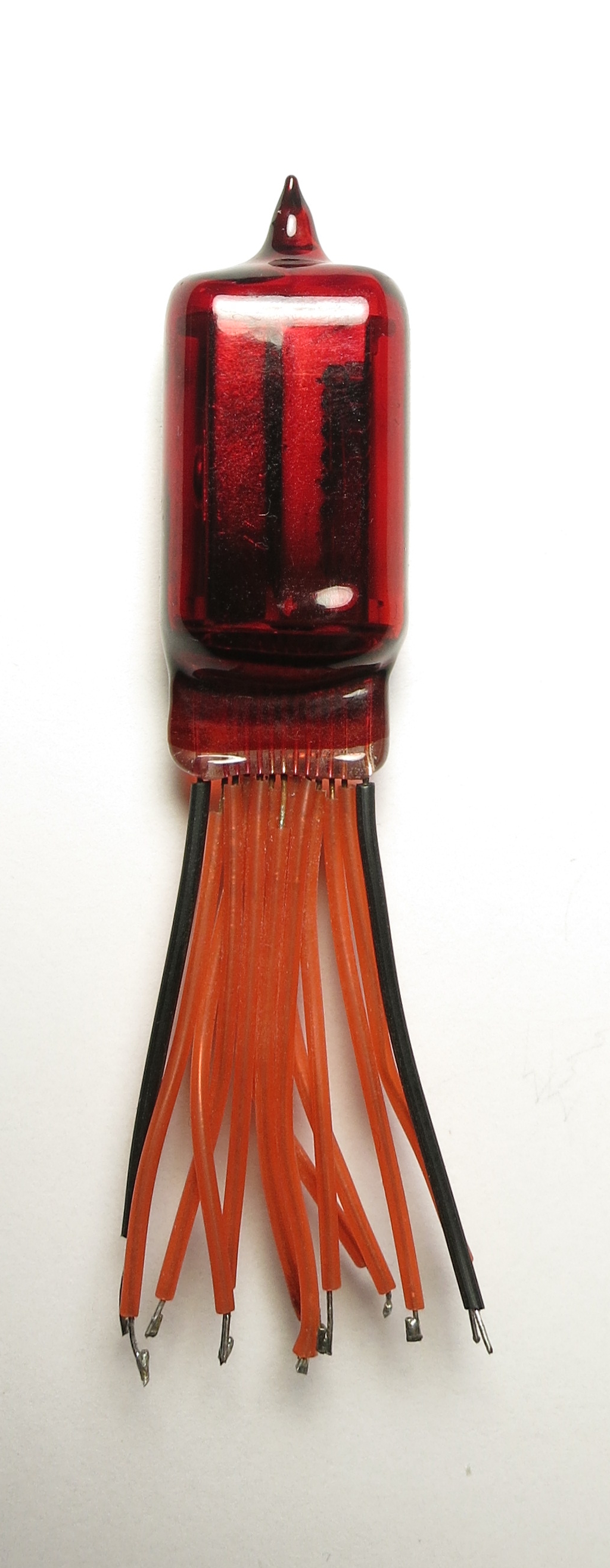

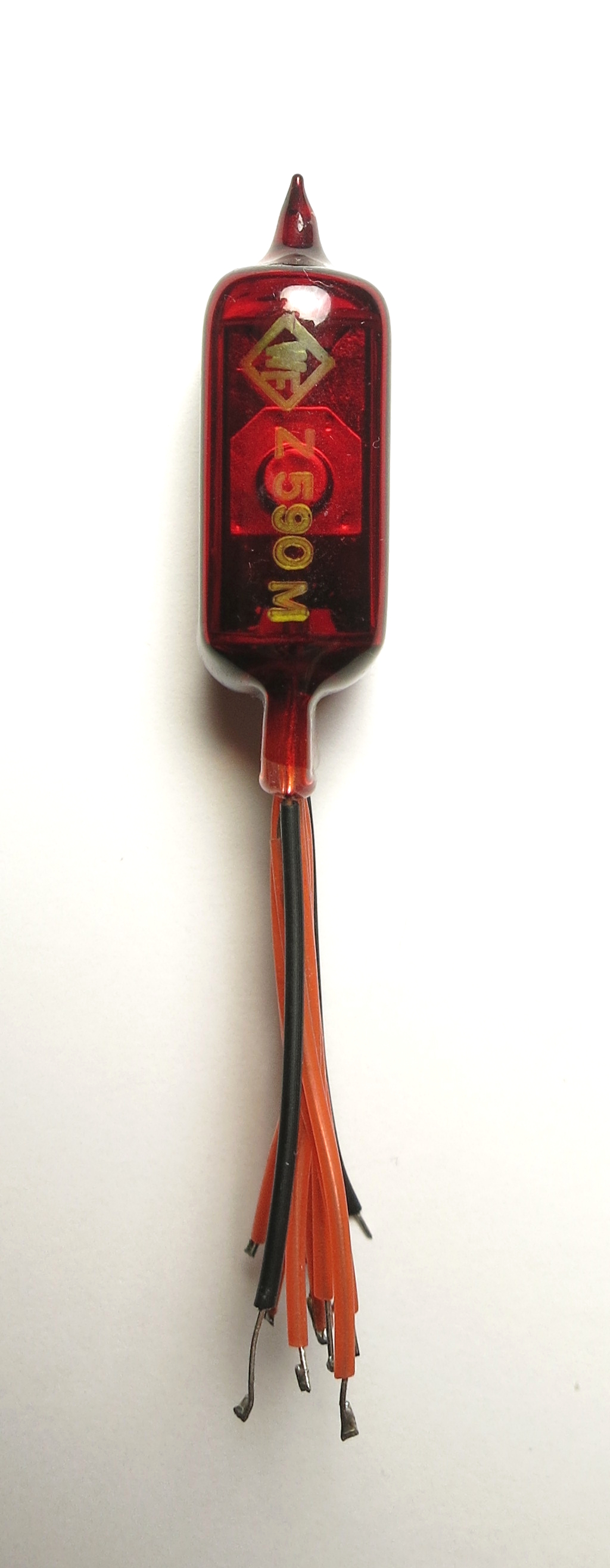

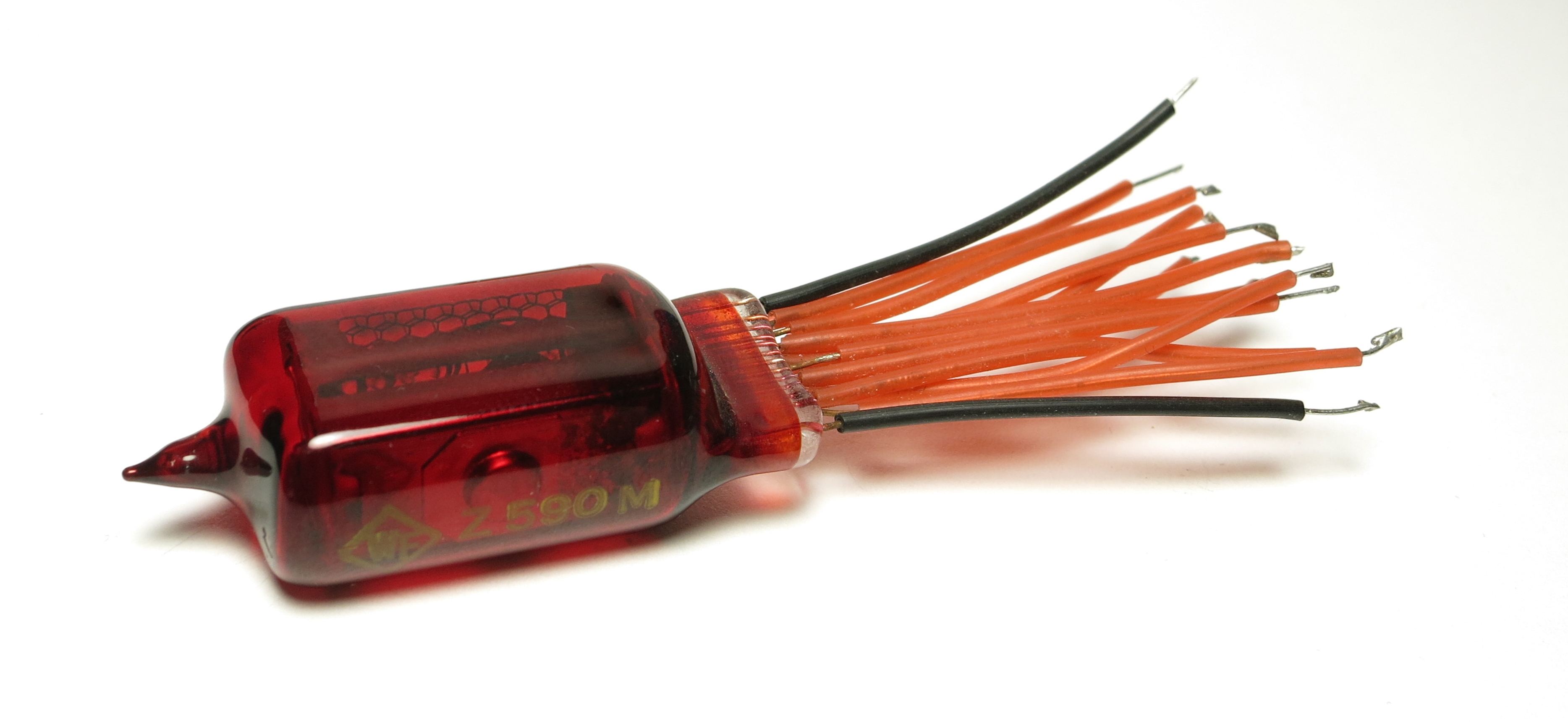

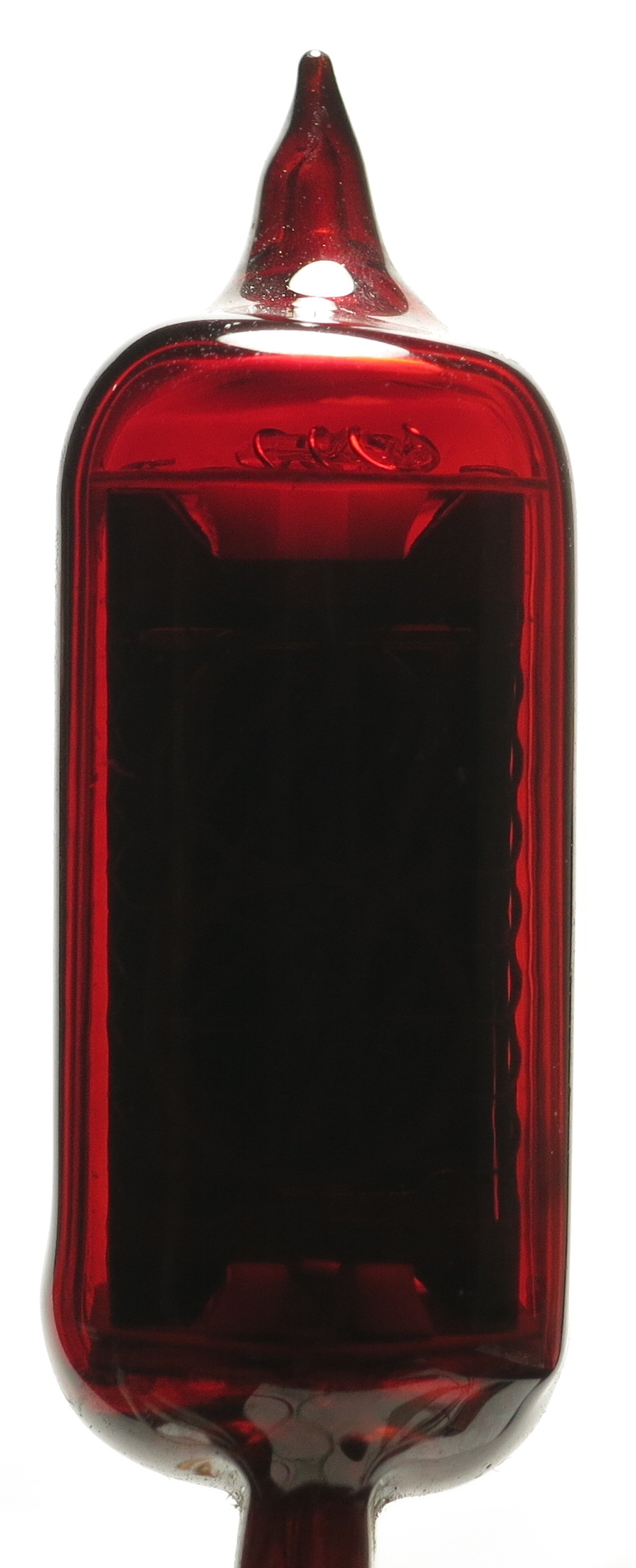

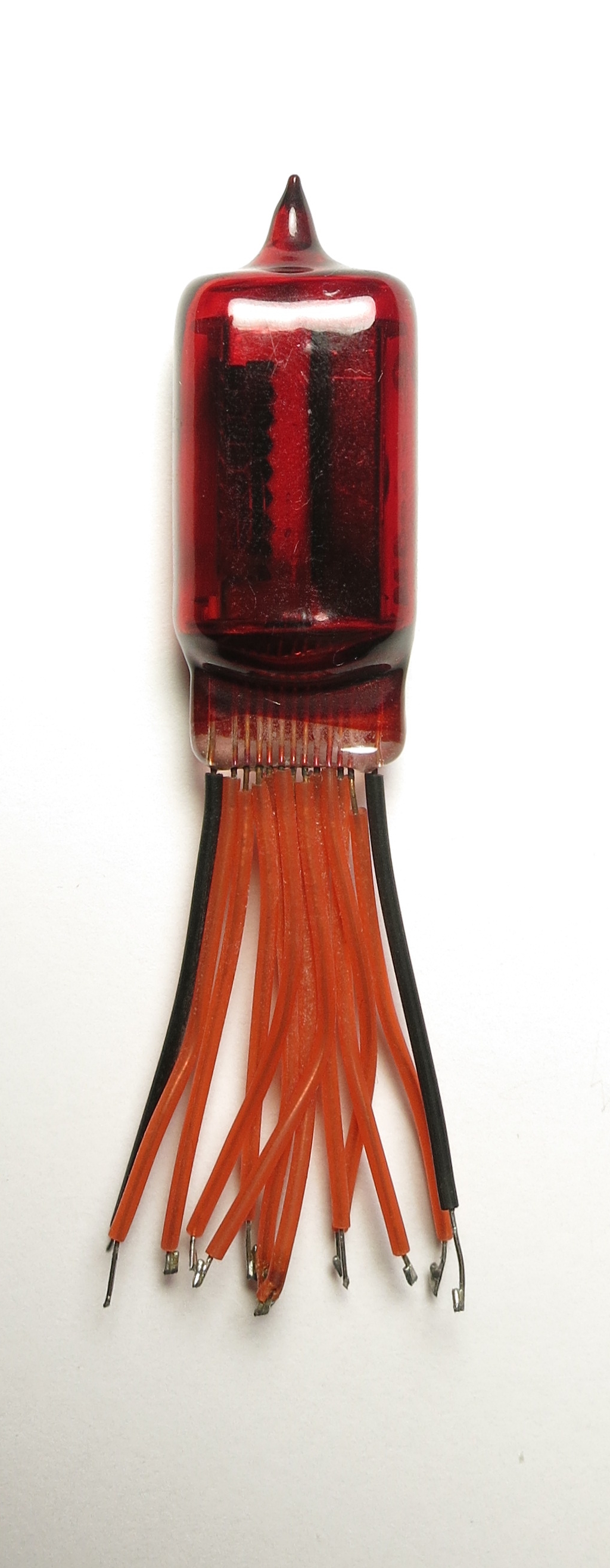

Die Anschlüsse sind in einer Linie herausgeführt, was sehr ungewöhnlich ist, und dieser Z590M ein rechteckiges Aussehen verleiht. In gewisser Weise ähnelt sie der F9020AA von CSF, jedoch sind bei dieser Röhre die Anschlüsse parallel zur Sichtachse herausgeführt, und nicht senkrecht wie bei der F9020AA. Hier ist die Z590M im Ruhezustand zu sehen:

Dieses Z590M Labormuster wurde in den 1970er Jahren im Werk für Fernsehelektronik in der DDR, Ostberlin, hergestellt und ging nie in die reguläre Produktion. Sie stammt aus dem direkten Nachlass von Emil Häußler, der diese Röhre entwickelt hat. Weltweit gibt es wahrscheinlich nur einige wenige dieser Exemplare, es handelt sich um eine echte Kuriosität.

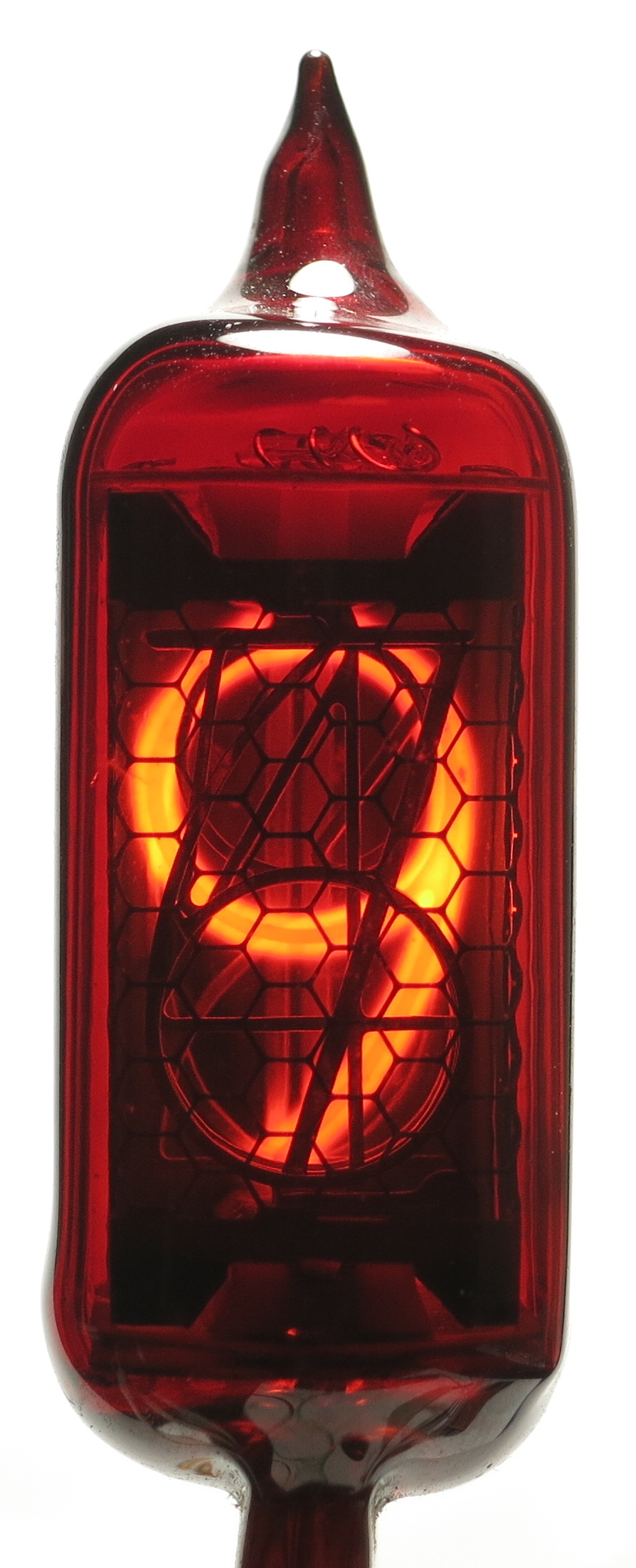

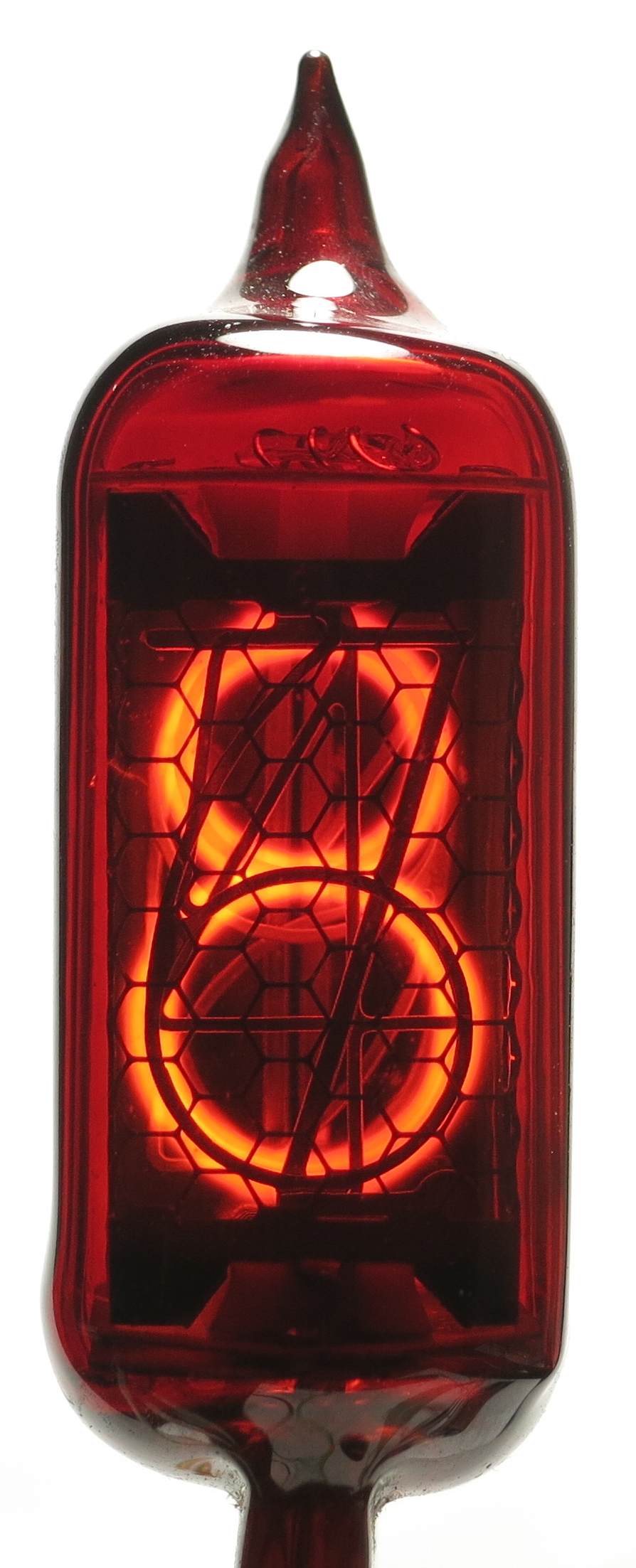

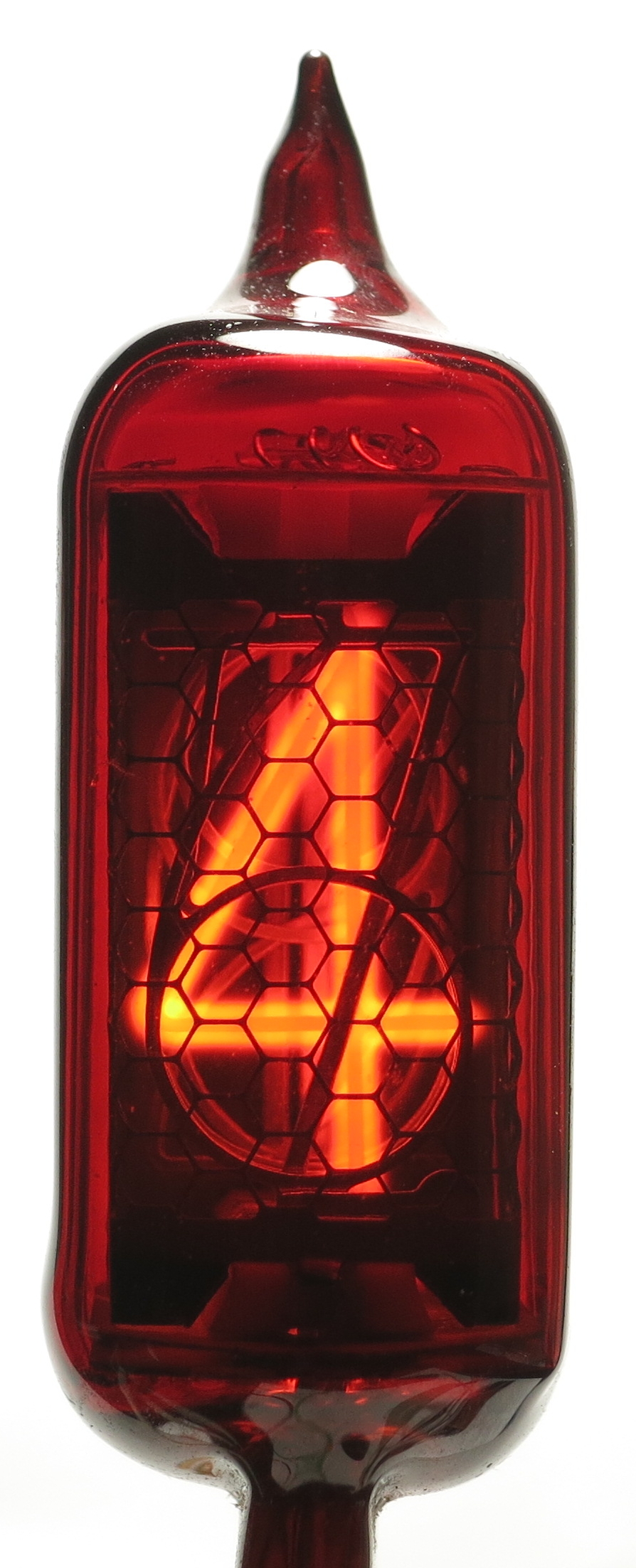

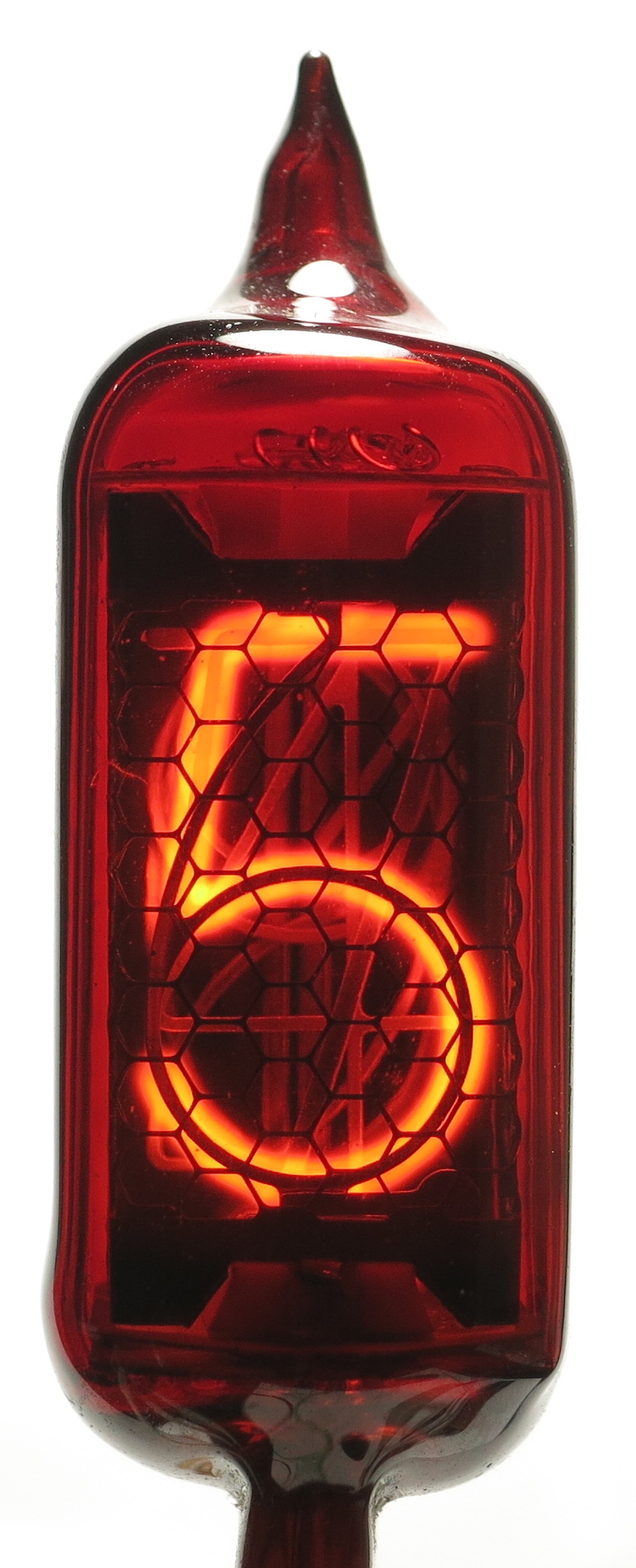

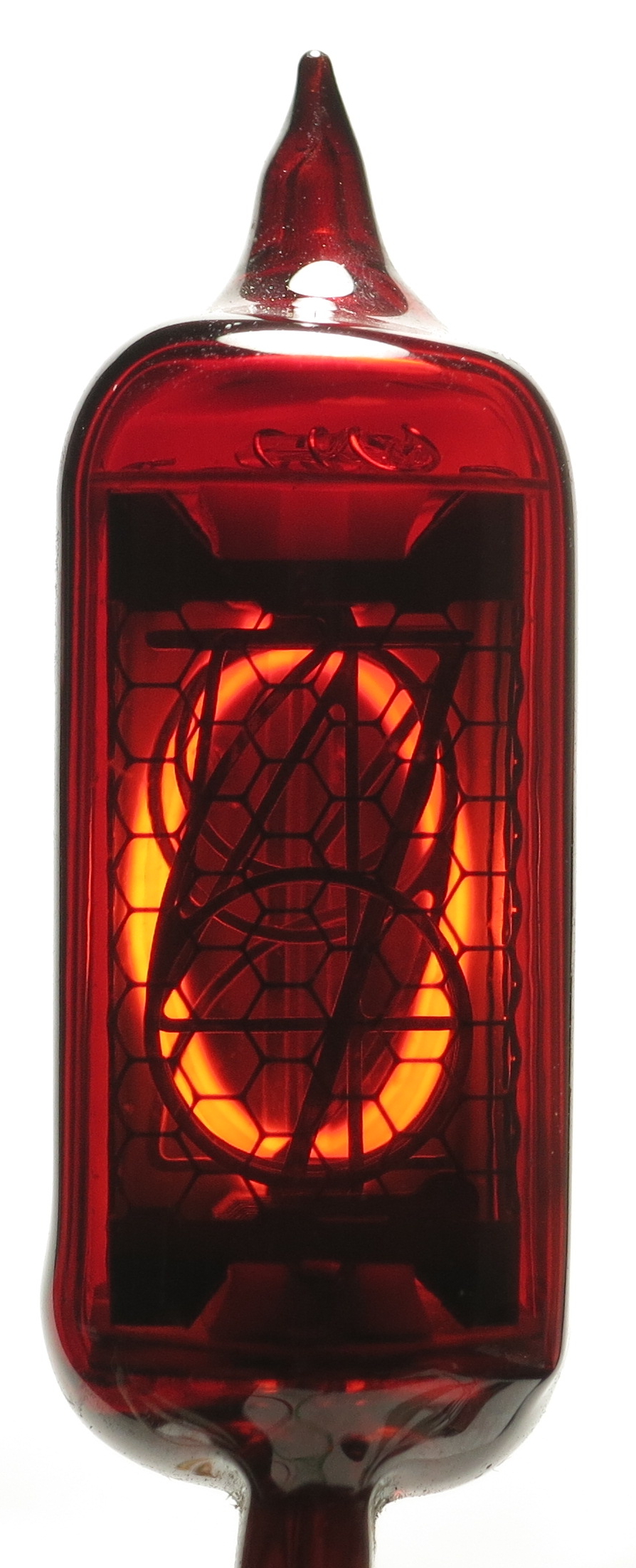

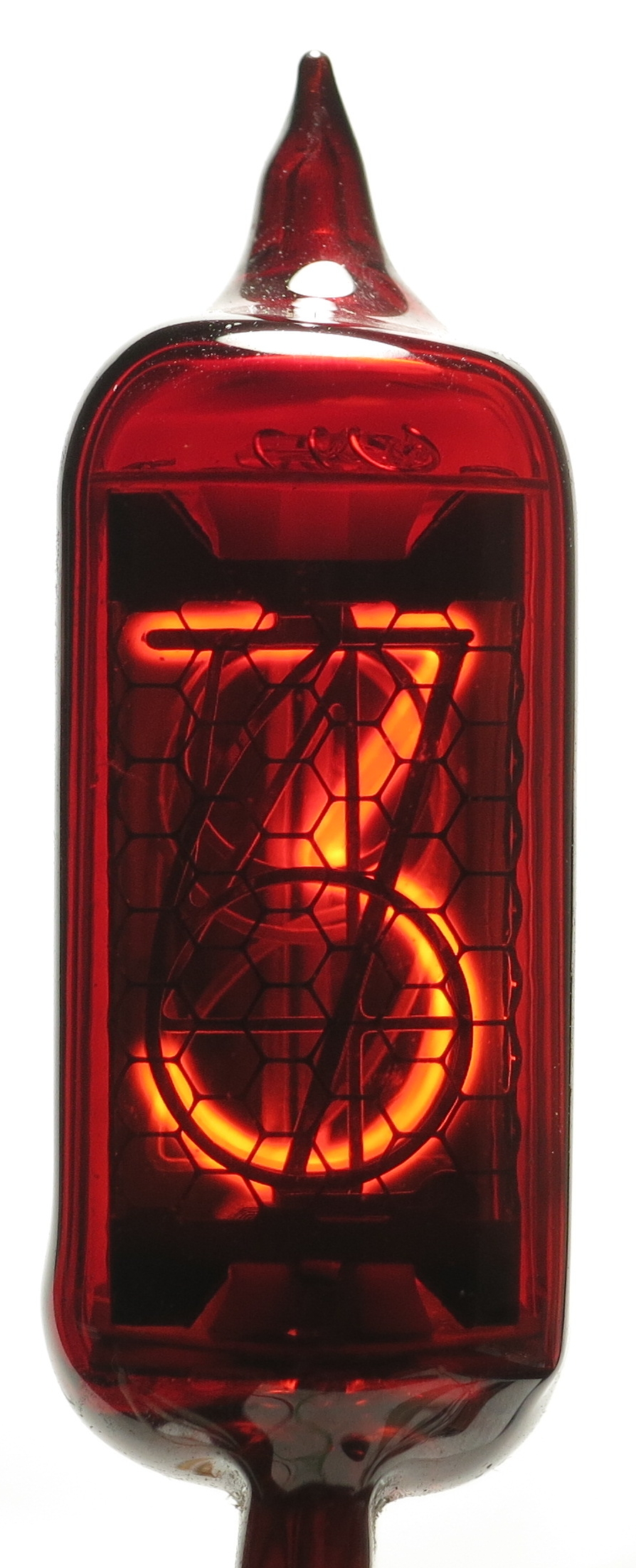

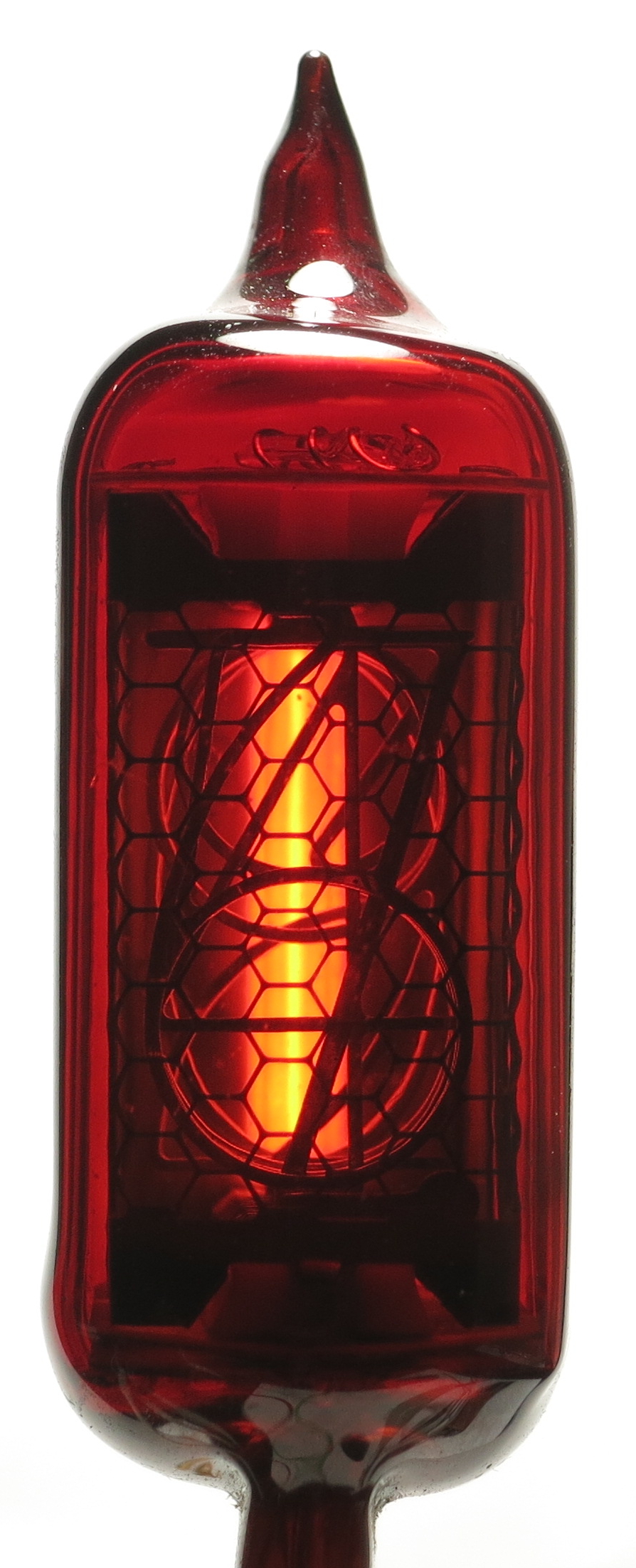

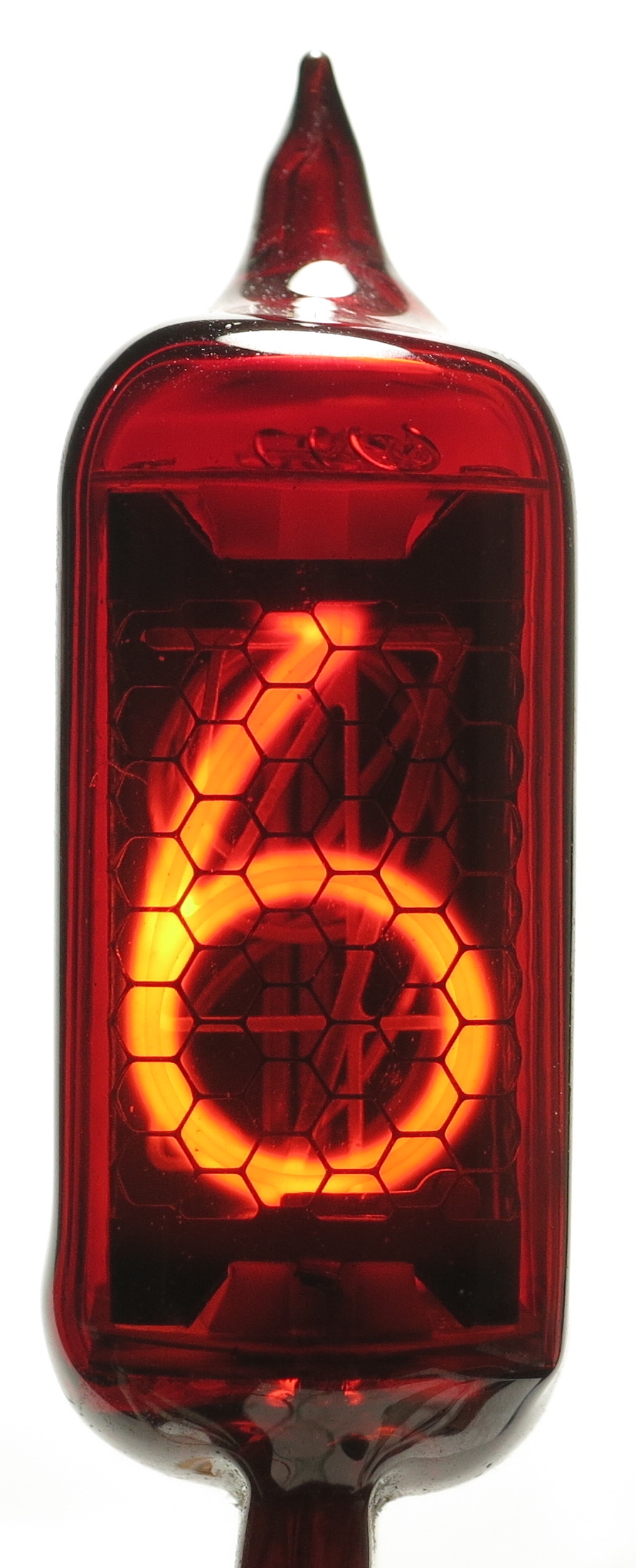

Hier ist das Leuchtbild der Z590M zu sehen:

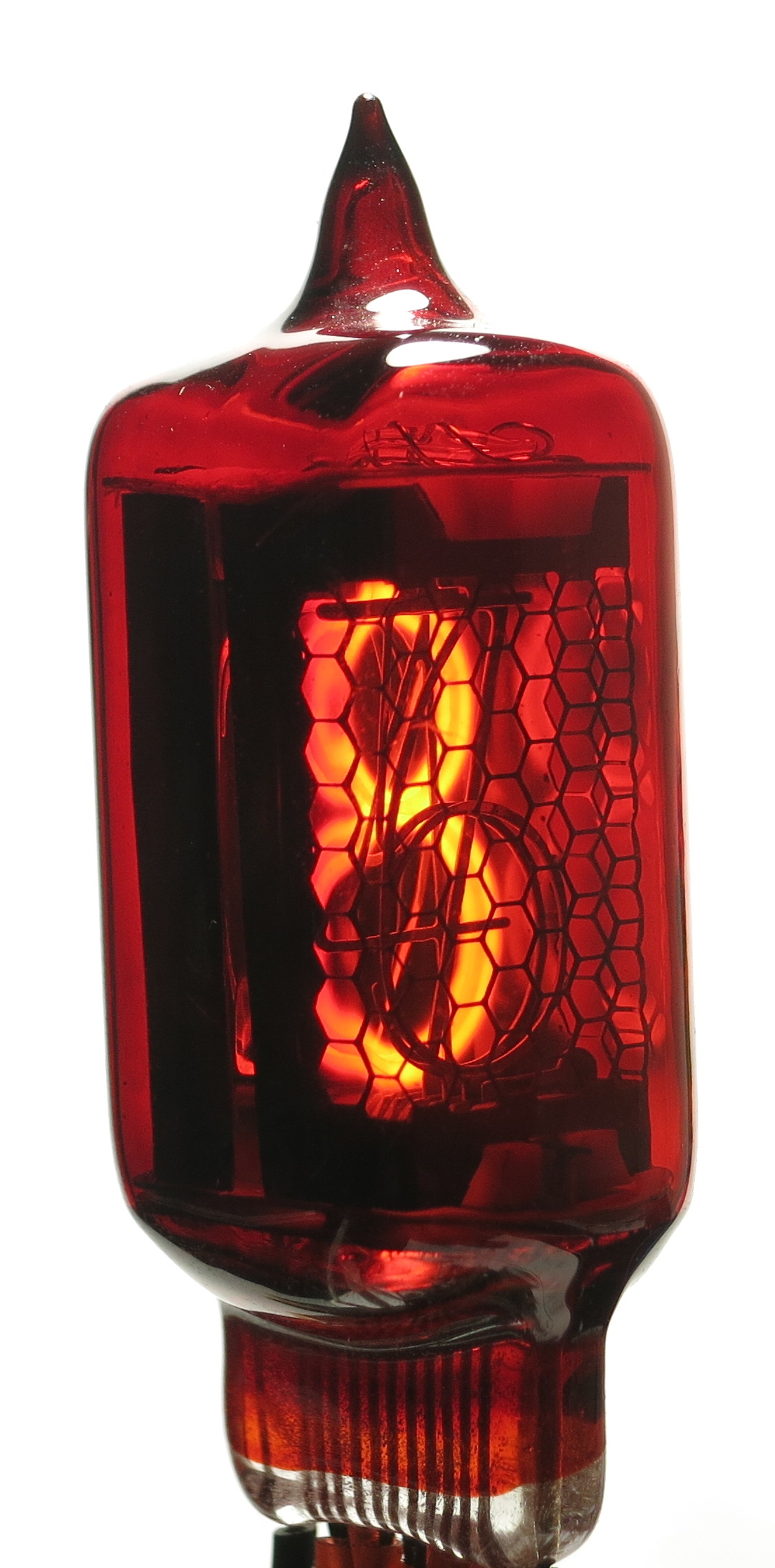

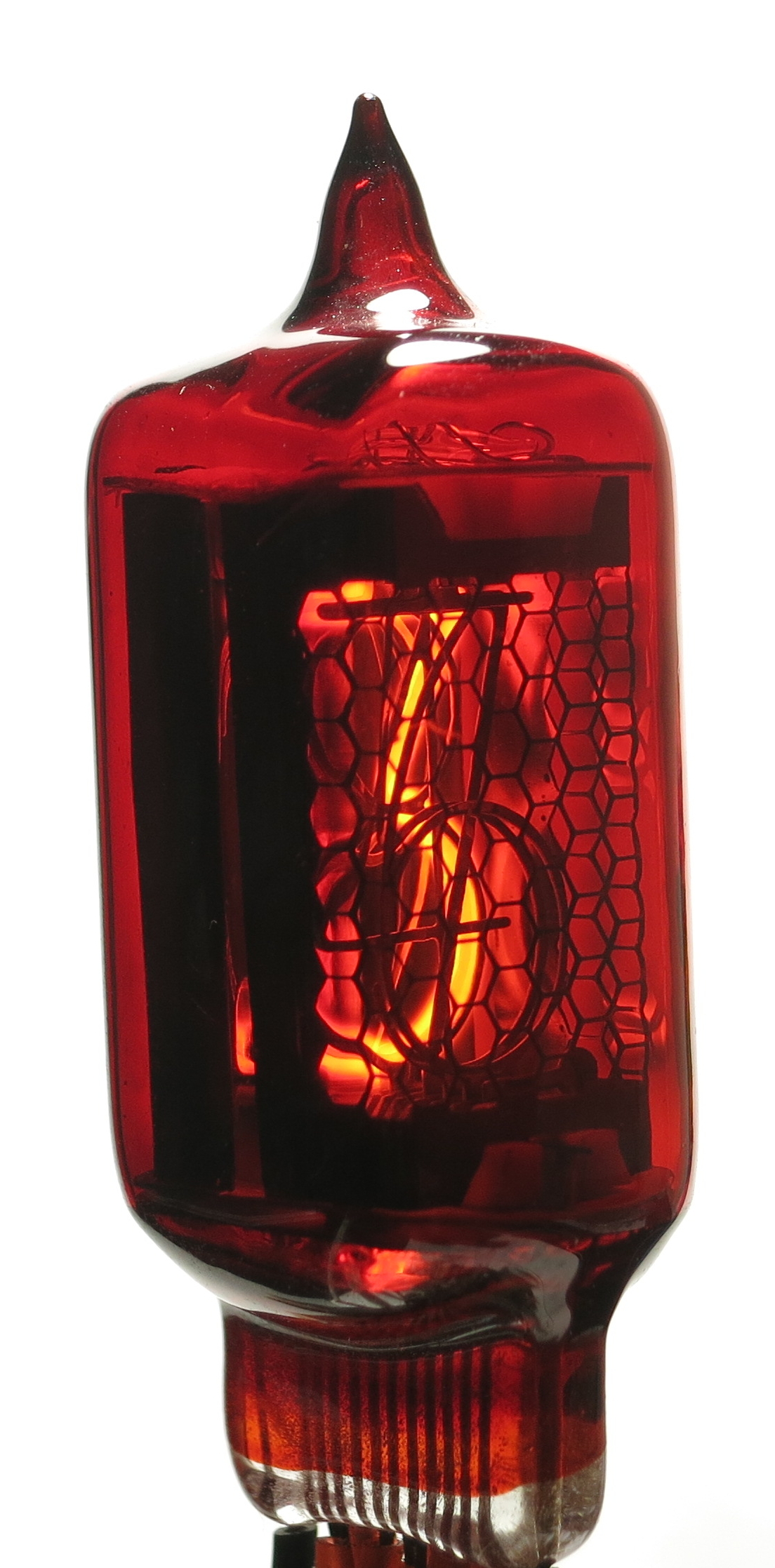

Durch die rechteckige Bausweise sieht das Leuchtbild von der Seite relative ungewöhnlich aus:

Leider besitze ich weder Datenblatt noch sonstige Dokumente zur Labormuster-Variante der Z590M. Wenn Sie mehr wissen, würde ich mich über eine Mail diesbezüglich sehr freuen.

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Nixie Tube Collection » Z590M (lab sample)

Z590M (lab sample)

This Z590M by the manufacturer WF is a lab sample. Other from the regular Z590M (digit height: 10mm), this specimen has a digit height of 13mm. Here you can see her in size comparison:

The pins are aligned all in parallel, which is quite unusual and makes this Z590M look rather rectangular. In some sense this pinout is similar to that of the F9020AA by CSF. Note, however, that in case of this Z590M the pins are in parallel to the direction of view, whereas for the F9020AA they are perpendicular to it. Here you can see the Z590M in state of rest:

This Z590M lab sample was manufactured at the WF factories, GDR, Berlin, in the 1970s, and never entered mass production. It was traced back directly to the estate of the late Emil Häßler, who also developed this tube. It is hard to estimate how many of these lab samples exist worldwide, it is quite the oddity.

This is the glowing display of the Z590M:

The rectangular shape of the tube makes the display of the Z590M look a bit odd from the side:

Unfortunately, I do not have any datasheet or documentation on this lab sample version of the Z590M. If you know more, please email me, I would be very glad.
